Improved quality by the latest technology and punctual delivery are the mottoes of Ishikawa Giken.

　　　　　　　　　　　　　　　　　

Features of stainless steel pipes
		Stainless steel pipes are made by inert gas tungsten arc (TIG) welding or high frequency induction welding using cold-rolled stainless steel strip.
		The latest production facilities and advanced technology are used to make these pipes, and their welding strength is highly stable.
		Products of stable quality are delivered using unique technology under strict quality control.
		Our product delivery is prompt and secure with our unique process control and delivery system.

Manufacturable sizes and mass table (kg/m)　　　　　　In case that the specific gravity of SUS304 is 7.93: w=tx(d-t)x0.02491 　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　 (d) = Outside Diameter　(t) = Wall Thickness (d)＼(t) 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 　6.0 0.043 0.056 0.069 0.081 0.092 0.104 - - - - 　7.0 0.050 0.066 0.081 0.096 0.110 0.124 0.137 0.149 - - 　8.0 0.058 0.076 0.093 0.111 0.127 0.143 0.159 0.174 0.203 - 　9.0 0.065 0.086 0.106 0.126 0.145 0.163 0.182 0.199 - - 　9.5 0.069 0.091 0.112 0.133 0.153 0.173 0.193 0.212 0.248 - 10.0 0.072 0.096 0.118 0.140 0.162 0.183 0.204 0.224 0.263 0.318 12.0 0.087 0.116 0.143 0.170 0.197 0.223 0.249 0.274 0.323 0.392 12.7 0.093 0.123 0.152 0.181 0.209 0.237 0.265 0.291 0.344 0.418 13.0 0.095 0.126 0.156 0.185 0.214 0.243 0.271 0.299 0.353 0.430 14.0 - 0.136 0.168 0.200 0.232 0.263 0.294 0.324 0.383 0.467 15.88 - 0.154 0.192 0.228 0.265 0.301 0.336 0.371 0.439 0.537 16.0 - 0.155 0.193 0.230 0.267 0.303 0.339 0.374 0.442 0.542 17.0 - 0.165 0.206 0.245 0.284 0.323 0.361 0.399 0.472 0.579 19.0 - 0.185 0.230 0.275 0.319 0.363 0.406 0.448 0.532 0.654 20.0 - 0.195 0.243 0.290 0.337 0.383 0.428 0.473 0.562 0.691 21.7 - 0.212 0.264 0.315 0.366 0.416 0.466 0.516 0.613 0.755 22.0 - 0.215 0.268 0.320 0.371 0.422 0.473 0.523 0.622 0.766 22.6 - 0.221 0.275 0.329 0.382 0.434 0.486 0.538 0.640 0.788 25.0 - 0.245 0.305 0.365 0.424 0.482 0.540 0.598 0.711 0.878 25.4 - - 0.310 0.371 0.431 0.490 0.549 0.608 0.723 0.893 27.2 - - 0.333 0.398 0.462 0.526 0.590 0.653 0.777 0.960 29.4 - - 0.360 0.430 0.500 0.570 0.639 0.707 0.843 1.042 32.0 - - 0.392 0.469 0.546 0.622 0.697 0.772 0.921 1.140 38.0 - - - - - 0.741 0.832 0.922 1.100 1.364

Mechanical Properties		Standard dimensional tolerance　Unit：�o
Steel type Mechanical Properties Flattening test Tensile Strength min. (N/mm2) Yield Strength 0.2%Offset min. (N/mm2) Elongation min. (%) Distance between flat plates (H) SUS304 520 205 35 1/3D SUS316 SUS321 SUS347 SUS430 410 245 20 2/3D A tensile test was conducted according to JIS Z 2241 (method of tensile test for metallic materials) using No.11 test piece specified by JIS Z 2201 (test pieces for tensile test for metallic materials).		Outside Diameter 〜φ10 ±0.10 φ10〜φ38 ±0.12 Wall Thickness 0.30〜1.00 ±0.10 1.00〜1.50 ±0.15 Length ＋50 −　0

Applications
Building materials Handrails, metal fittings, shutters, pillar materials Electrical appliances VTR's, video cassette tapes, antennas, hot-water heaters, lightings, heater pipes Vehicles Handrails, baggage racks, Vehicle parts Furniture Tables, chairs, wagons, display shelves Office supplies Ball point pens, mechanical pens, copy rollers, printers Household utensils Cupboards, dish racks, towel bars, laundry hanging bars, hose reels Others General decoration, various sensors, sporting goods, gardening items

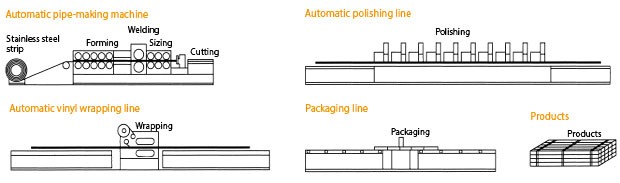

Stainless steel pipe production process diagram

　　　
