Beautiful shapes and elegant gloss
will create a simply refined beautiful
space.



Features of ICS pipes
ICS pipes are stainless steel clad pipes. Ultra thin (0.1mm) stainless steel strip, SUS304 (18Cr-8Ni), is attached to the surface of carbon steel pipes for machine structural use which are produced by a high frequency welding automatic pipe-making machine. The joint sections are welded by a seam welding method.
The surface of the stainless steel pipes is polish-finished to #400. It gives a beautiful appearance and a solid and elegant gloss compared to plated pipes.
The joints of the covering stainless pipes are completely welded. Since the joints are also welded on the inner steel pipes, the pipe can be used as one integrated pipe, and can compare favorably with a all stainless steel pipe.
ICS pipes are much less expensive than all stainless steel pipes.


Enlarged view of section of ICS pipe
 cross section



Applications





Product types and specifications
Outside Diameter(o) Wall Thickness(o) Standard length(o)
9.5 0.8 3,650 4,000
13 1.0 3,650 4,000
15 1.0 3,650 -
16 1.0 3,650 4,000
19 1.0 3,650 4,000
22 1.0 - 4,000
25 1.0 3,650 4,000
28.7 1.2 - 4,000
32 1.2 3,650 4,000
38 1.2 3,650 4,000
(1) Dimensional tolerance is +0.05/-0.15mm in Outside diameter and +-1.00 mm in length.
(2) Please contact us for dimensions other than those listed above.
For cars, trains and buses
Baggage racks, ceiling handle pipes, handrails, seat frames, driver seat frames
For building, department stores and public facilities
Banisters, handles, protection racks, wall racks, exit/entrance sign poles
For stores
Product display shelves, partitions, screens, window gurad pipes, other various interior and display items
For homes
Various shelves, banisters, laundry hanging bars, hangers and shelves for closets and storerooms
For various machine parts
Steel furniture, electric appliances, food industry machines, medical equipment

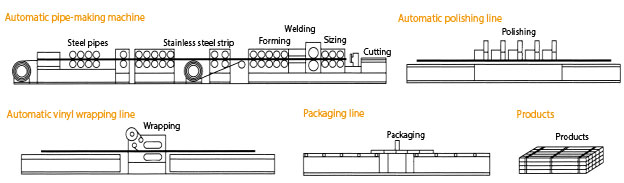

ICS pipe production process diagram
